Pulsed Field Assisted Chemotherapy



James E. Bare

8005 Marble Ave. NE

Albuquerque, NM 87110

505-268-4272

jbare@plasmasonics.com



This paper was originally written in 2004 and more published research has now  been  located which is not referenced in this paper. A web page has been created with the full abstracts from published research that demonstrates the synergism  between pulsed EM fields and chemotherapeutic medications .



Updated References and Abstracts



Research into the physiologic effects of low power, pulsed electromagnetic (EM) fields, has produced a number of important discoveries. To date, with rare exception, these discoveries at best are investigational, and have not been applied in a clinical manner.  Much of this research material is unknown to the general practitioner, and has not been correlated into a potentially utilizable treatment method.  This paper proposes the fusion of existing cancer chemotherapy techniques with low power pulsed EM field research discoveries. Evidence is presented that the sum of these combined effects far exceeds that of each method individually. A transmitted, pulsed EM field,  can be created which will safely produce whole body permeation/saturation. Such saturation can create an interaction of the pulsed EM field with chemotherapeutic medications, simultaneously,  at all tumor sites throughout the body. By creating a synergism of biochemical, electrochemical , and electronic principles, the practitioner should be able to achieve a superior treatment outcome.



Present chemotherapy regimens are fraught with many shortcomings. The worst of these is toxicity , which can include permanent damage to various vital organs including the heart, lungs and kidneys. Even without such permanent damage, short term toxicity manifests as severe nausea, repression of the hematopoietic system,  alopecia, and many other types of physical unpleasantness. Other major problems with chemotherapy are development of cellular accommodation ( non responsive/refractory to treatment), patient/family mental  stress,  and in many cases no clear cut outcome other than  temporary tumor shrinkage. Actual prolongation of patient survival post treatment is all too often a secondary consideration in the application of chemotherapy.



The great majority of cancer research is directed not to a solution of the these problems, but rather towards a solution to cancer.  For patients, the only  reason they consent to such abusive treatment,  is that the consequences of  untreated cancer outweigh the negative repercussions of treatment.   What is needed is a new chemotherapeutic medication which will selectively affect cancer cells, and  has minimal  side effects/toxicity.  This medication would also  have improved outcomes from treatment, and be highly resistant to cellular accommodation . Primary importance would be directed to improved patient survival percentages and overall length of survival. Such a medication does not now apparently exist, and next to an outright cure, could be considered as the “Holy Grail “ of cancer treatment. It is the contention of this paper that it may be possible to adapt at least a few of the presently utilized chemotherapeutic medications, to a new treatment protocol. A protocol that will produce the effects that meet this idealized vision of cancer treatment.



This transformation of available chemotherapeutic medications and treatment is to be accomplished via a synergistic combination of the medication with a low voltage and low current, transmitted pulsed electromagnetic (EM)  field. The ideal transmitted EM field is one that can couple itself energetically to the entire body. That is, the field may be used to treat the entire body at one time. This will ensure that wherever the medication can be delivered within the body, treatment congruence between the field and the medication will occur. There is considerable scientific supporting evidence for this proposal that will be discussed in the following paragraphs.



The utilization of electrical pulses with chemotherapy medications is not new. This technique is being investigated and employed by a variety of researchers and cancer treatment specialists. The primary method utilized is some variant of what is known as electropermeabilization or as it is also known, electroporation.  An ultra short time duration, but high intensity, electrical pulse , is applied to a tumor or group of cells to produce short duration and reversible pores within the plasma membrane. Pores through which various ions and molecules may be introduced into the interior of the cell. To use this technique,  a tumor site is saturated with a chemotherapy drug and then pulsed  through implanted electrodes with a very short and very intense electrical signal.



An associated technique being utilized by some clinicians and researchers is known as EChT or Electro Chemical Treatment of tumors. In this method electrodes are inserted into the cancer site along with a chemotherapeutic medication. In contrast to electropermeabilization,  relatively low currents and voltages are used on the tumor site. These voltages and currents may be  applied for many hours at a time.  The migration of charged particles in the created field is somewhat akin to electrophoresis and has produced some excellent responses to treatment.



Many of the chemotherapeutic drugs chosen for EchT or electropermeabilization techniques belong to the class known as Alkylating agents. These compounds are electrically polarized and capable of being influenced to migrate in an electrical field vector.  There are obvious and non obvious reported problems to both  of these electrically based methods. These include:

1.      The techniques can only be used on specific localized tumors.

2.      The patient must endure the implantation of electrodes and direct injection of the chemotherapy medication. Often deep within the body.

      3.  The   effects occur primarily between the electrodes, with very large tumors needing

             multiple placement of needle electrodes. The technique cannot be utilized with

             extremely small tumors. This allows small metastatic sites to escape treatment.

4.      Some tissues do not tolerate the direct application of chemotherapeutic medications, and there may be collateral damage to healthy tissue.

5.      With EChT, there is also metallic ion migration off the electrodes into the surrounding tissues. This can create localized areas of metal toxicity.

6.      The patient must endure the bursts of electrical current into their body from either EChT or electropermeabilization. In  EChT, the electricity is much akin to that delivered by a muscle stimulator.  An electropermeabilization pulse is more akin to the spark derived from an automotive ignition coil. To use a more graphic example of what a patient experiences, imagine having a muscle stimulator or car ignition coil attached directly to your colon.



In defense of electropermeabilization and EChT, both methods overcome some major problems in traditional oral or IV chemotherapy. Through direct injection into a tumor, the medication can be concentrated at the site of the tumor without creating whole body toxicity. Electropermeabilization and EChT offer a method to increase drug delivery into the cancer cells, which has brought about some very significant responses to treatment. Further, the amount of medication necessary to produce a toxic response within the cancer cells, is at times,  significantly reduced.



EChT and Electropermeabilization are not the methods to be utilized in this proposal . They have been discussed only to demonstrate that there are existing  synergies between electrical fields and chemotherapeutic medications.



Concept Discussion:



The human body ( or for that matter any mammals body) is very complex electrically  . Each cell within the body has a particular set of electrical parameters within which it functions. The cells of the body operate and maintain their homeostasis  at least partially through  electro chemical processes. Electrically charged particles such as ions, and proteins,  accumulate on both sides of the various membrane interfaces of a cell, and create an electrical potential. Normal cells and cancer cells have many different physiologic qualities,  which include those of  their plasma membrane potential and electrochemistry.  A normal cell  has a plasma membrane potential of about 70 to 100 mv (Cone, 1970, 1975, 1985). This is equal to an electrical potential of between  10 and 20 million volts per meter ( Brown, 1999). The mitochondrial membranes of a normal cell maintain an electrical potential of  almost 40 million volts per meter (Brown, 1999).



When a cell becomes cancerous, plasma membranes degenerate and  depolarize ( Marino et. al. 1994 ) .More succinctly, the electrical potential across the membrane drops drastically.  The degeneration and loss of electrical potential of the plasma membrane  in cancer  allows it to become more permeable to water, and  to certain ions such as sodium that normally are found in abundance on the outside of  a normal cell. In cancer, sodium is allowed  through the cells plasma membrane and accumulates within the cytosol. Meanwhile the ionic elements of potassium, magnesium , calcium, and zinc,  which are normally found inside of the cell plasma membrane, tend to migrate out of the cytosol (Seeger and Wolz, 1990). As the distribution of ions shift, cancer cells tend to become very electronegative, and the tissue areas surrounding the cancer cells become quite electropositive. This electropositivity has been used for detection of cancer (Marino, et. al, 1994). The combined effects of the low plasma membrane electrical potential and ionic imbalance, assists in the conversion of a normal cells aerobic based metabolism to that of a cancer cell with  an anaerobic based metabolism. Conversion to anaerobic glycolysis (fermentation) as a primary mechanism for energy production results in excessive accumulation of organic acids and acidic pH alterations in cancerous tissues (Seeger and Wolz, 1990).



The loss of electrical potential across a cancer cells plasma membrane is the foundation upon which this proposal is based.  The application of an artificially created electrical field of  a few tens of millivolts at the plasma membrane of a cancer cell  will  create an  electrochemical imbalance of the cell.   An imbalance which this proposal intends to exploit.



Ions and molecules ( chemotherapy medications)  enter cells through a variety of different methods.  These methods include ion gating, osmosis, and endocytosis. In a normal cell, these mechanisms are all driven by cellular energetic pathways.  Ion Gating and Osmotic methods are capable of only passing small ions through the cell plasma membrane. Endocytosis, can pass large macromolecules such as sugars, and most importantly medications.  These three methods of transport can be artificially mediated and elicited by the presence of an external pulsed electrical field.  (Teissie and Tsong 1981, Petrov and Mircevova, 1986 , Rosemberg and Korenstein ,1997 ) When  so accomplished they are known as Voltage Dependent Ion Gating, Electro Osmosis, and Electro Endocytosis. By inducing these electrically driven methods of transport, pulsed  electrical fields are capable of producing disruption of the cancer cells electro chemical balance and function ( Panagopoulos, Karabarbounis and Margaritis,  2002).

Electro endocytosis is of significant interest to this proposal. Endocytosis is a process whereby the cell plasma membrane invaginates and surrounds a large macro molecule. This piece of plasma membrane then closes off to form a vesicle which transports the molecule within the cell. The reverse process is known as exocytosis, whereby the empty vesicle is transported back to the plasma membrane. The vesicle then opens, and rejoins the plasma membrane.  The process of endocytosis must be balanced to some degree with the process of exocytosis. If an extreme excess of  endocytosis in relation to exocytosis occurs, a possible compromise of the cells plasma membrane may ensue.



It is well known that at very high electrical field strengths, a process known as vesicle  electroformation occurs. This process can create extremely large or macro size vesicles out of bilayer lipid membranes. A high electrical field strength dependent process is not the mechanism this proposal seeks to utilize.



Rosemberg and Korenstein ( 1997)  have shown that the process of electro endocytosis can occur at very low field strengths. They found it possible to incorporate molecules in the 1-2000 kD range into 85% of the cells used in their test.  Other researches have supported this finding. The necessary field strength can be as low as 20 V/cm or a transmembrane potential of 6mv ( Teissie & Tsong, 1981).    Electrically polar  and nonpolar chemotherapeutic molecules have been utilized with very low electrical field strengths to produce highly significant positive treatment outcomes. Entin, et. al. (2003) , used fields of 40V/cm  (12 mv added transmembrane potential ) with Bleomycin, Taxol , and Cisplatin in treatment of mice inoculated with melanoma cells. A low voltage  enhancement was also reported by Miyazaki, et. al. (2003).  Mice inoculated with Colon cancer cells were given intratumor injections of Bleomycin and exposed to fields of from 50 to 150V/cm . The use of  chemotherapeutic medications with electrical fields can result in enhanced cellular sensitivity to the medication. Gray , et. al. (2000) found  severe over dosage reactions to Adriamycin (ADM) occurred when ADM was administered to animals kept in a static but very intense electrical field  .



Cisplatin and it’s immediate family of molecules acts directly upon DNA.  It has been used successfully in the combined treatment of  B-16 melanoma  bearing mice with low ( 20-100V/cm) field strength ( Entin et. al.,  2003). It seems apparent that not only will the presence of cis-platinum type molecules within a cancer cell be advantageous, but so would a simultaneous stimulation of the activity level of the cells DNA. Cancer cells go through periods of rest and activity and most chemotherapeutic drugs are primarily effective against rapidly dividing cells. Application of chemotherapeutic medications is often timed to a perceived  interval of genetic/cellular activity. The usage of low voltage pulsed fields seems to create an artificial  “window” of activity.  Low voltage pulsed electrical fields act not just upon the ability of a cell to aid molecular & ionic transport, they also act upon the cells DNA. Binderman, et. al.(1985) found that at between 13 to 50 V/cm , cell cultures of skeletal origin would immediately show changes in cyclic AMP levels and enhanced DNA synthesis .  Blank and Soo ( 1997 ) reported  a frequency dependent effect on Na, K-ATPase enzyme activation in fields of from 3- 3000 Hz. Pulsed EM fields have been linked not just to enzyme reactions but also to increased transcription rates for specific genes. Pulsed EM fields act directly on signal transduction pathways and with electrons in DNA to stimulate biosynthesis ( Goodman and Blank 2002).



Chemotherapy cellular resistance is the most common cause of treatment failure and has several different etiologies.  The most ubiquitous method of resistance to treatment is that of activation and expression of energy dependent transporters that literally remove the medications from the cells ( Gottesman 2002). The medication, due to the action of transporters,  is not allowed to accumulate to a toxic level and cannot perform it’s assigned task.  Even though small amounts of chemotherapeutic drugs do enter resistant cancer cells,  the drugs biochemical action is thwarted. It is thought that the primary action of chemotherapeutic drugs is the initiation of apoptosis. Apoptosis is at least partially mediated by the behavior and chemical signals produced by the mitochondria. The mitochondria of malignant cells are electrochemically different from those of normal cells. This electrochemical difference acts to block mitochondrial response to the medication, and thwarts the apoptotic cascade.



The plasma membrane potential of mitochondria in cancers cells has been found to be elevated, in one case it was  approximately 60 mv higher than that of control epithelial cells   ( Modica-Napolitano and Aprille 1987 ).  Elevated mitochondrial membrane potential coincides  with Cisplatin resistance in some cancer cell lines ( Dorward and Singh 1996).  The high transmembrane potentials of mitochondria are created by a relative electropositivity of the outer membrane and a high negativity  of the inner membrane ( Johnson , et. al.  1981). Mitochondrial based  apoptotic mechanisms require that the plasma membranes of mitochondria depolarize, resulting in diminution of the transmembrane potential ( Mayer and Oberbauer 2003).  Due to their elevated electropotential, mitochondria of cancer cells  are going to have to undergo a much greater fall in electrical potential than a normal cell to initiate apoptosis. Further, formation of mitochondrial permeability transition pores ( a key factor in the initiation of mitochondrial based apoptosis) is inhibited as pH decreases (Nicolli , et. al. 1994).



There are other inhibitors of treatment response within cancer cells. The majority of solid tumors show some if not total resistance to chemotherapy. This resistance is mediated by a local stress response to the microenvironment. When solid tumors are subjected to local conditions of hypoxia, acidic pH and low levels of glucose they react by stopping division. When cell division is arrested in this manner, chemotherapeutic medications become ineffective, that is they fail to induce apoptosis.  ( Tomida and Tsuruo 1999 ). In summary, cancer cells are at least partially self protected against chemotherapy initiation of apoptosis through their electrochemistry.



Pulsed Field Correction of  Drug Resistance:



Correction of cellular stress factors, inhibition of intercellular drug transporter mechanisms, excess acid production,  and excess mitochondrial membrane potentials, may be possible through the application of external pulsed EM fields.



Rosemberg and Korenstein ( 1997 )  found that low voltage induced electro endocytosis could be used to incorporate polysaccharides and  - galactosides into cells. A confirmation of this effect was presented by Rols, et. al.( 1995) . When stressed by hypoxic conditions, cancer cells produce compounds that create neoangiogenesis. They also produce more hypoxia inducible factor 1 (HIF1) ,  increase expression of hypoxia regulated genes , and  metabolically shift to utilize the  oxidizing ability within the fatty acid synthesis pathway ( Hochachka, et. al.  2002 )  .  Angiogenic responses to hypoxia can lead to increased tumor growth , increased metastasis and poor treatment outcomes ( Duffy, et. al.  2003). Through the application of pulsed EM fields  it may be possible to circumvent  these stress responses to hypoxia.  Di Carlo, et.al. ( 2000), found that EM field exposures protected chick embryo’s from hypoxic insult.  More definitively it was found that EM fields could be used to induce increased heat shock protein 70 (hsp70) levels ( Han,et. al. 1998, Carmody, et. al. 2000 ). Hsp70 plays an important part in the protection of tissues to hypoxia ( Rafiee, et. al. 2003 ). Overproduction of hsp70  has been found to  protect cancer cells from apoptosis following irradiation  and  chemotherapy (Witkin, 2001). This must be judged against the consequences of a hypoxic response.  The expression of hsp 70 is key to preventing some of the sequences that lead to hypoxic response.  More importantly, hsp70 has been linked to anti cancer immune system responses. Apoptosis can result in an immunogenic or non immunogenic response. The immunogenic response is dependent upon the presence of hsp70. Stressed cancer cells express hsp 70 on their plasma membranes , and can initiate an antitumor response by the immune system ( Feng, et. al. 2003). This response can be significant.  Mice were inoculated with Colon 26 cells and then treated with EChT and Bleomycin. An 80 to 100 % response rate occurred. When the same mice were reinoculated with Colon 26 cells, the mice rejected the cells and no tumor growth was noted. Injection of a different cancer produced tumors in these same mice (Miyazaki et. al. 2003 ).  It has been found that immunogenic response to necrotic and  apoptotic tumor cells  can be equivalent (Kotera et. al.  2001)



To clarify, the presence of pulsed EM fields may inhibit many of the undesirable cellular metabolic responses of cancer cells to hypoxia. These responses include; generation of hsp70, inhibition of expression of  HIF1,  diminish the production of angiogenic proteins, initiation of an anti cancer immune response, and possibly inhibit the activity of  the FAS to reduce cellular growth rates.  This proposed outcome from the use of pulsed EM fields to inhibit angiogenesis and tumor growth is supported in the literature. Pulsed EM fields were found to inhibit tumor growth with a reduction in the extent of vascularization and increased areas of tumor necrosis compared to controls ( Williams, et. al.  2001).







In a cancer cell, Na+ ions accumulate inside the cell and K+  ions accumulate outside the cell. Modification and  reversal  of the local ionic concentrations and can be created by an external AC field. ( Teissie and Tsong 1981). Further , elevated pHi will increase the delta pH across the plasma membrane. It has been found that as a Multi Drug Resistant (MDR)  protein is expressed, the delta psi   or plasma membrane potential decreases ( Roepe, et. al.  1993). The presence of a pulsed field will circumvent the fall in plasma membrane potential.  The energy within a pulsed EM field is capable of being absorbed by plasma membranes at least partially through the process of electro conformational coupling (Tsong,,  et. al.,1989)  Once absorbed, this energy may be converted to the chemical bond energy of ATP or to the  potential energy of concentration gradients  ( Tsong, et. al., 1989, Timashev 1981) . EM pulse responses of cellular membrane systems are  frequency  dependent. This response has been shown in several membrane enzyme systems ( Markin and Tsong 1991, Luchian, et. al., 2002, Ruiz-Gomez, et.al., 2002,  Gluck et.al. 2001). Frequencies can also be utilized to affect cell division and growth. Kirson et al.,2004 ,found that low intensity frequencies in the 100 KHz to 300 KHz  produced an inhibitory effect on a variety of human and rodent cell tumor lines. This effect was non thermal, and acted through both arrest of cell division and  destruction of cells undergoing division.



Movement of ions and molecules across the mitochondrial membranes is normally accomplished by a chemiosmotic mechanism that is free electron dependent. It is possible that the presence of a pulsed field  could supplement, drive, or supplant this mechanism and  affect the electropotential gradient of mitochondria. This may result in a diminution of the outer membranes electropositivity, allowing the Voltage Dependent Anion Channels  ( VDAC) to open. As the electropotential of the mitochondrial membranes become depolarized the probability of Mitochondrial Permeability Transition Pore ( MPTP ) formation increases. (Petronilli, et. al., 1994). Formation of MPTP’s is a necessary precursor to the initiation of mitochondrial based apoptotic mechanisms. Similar pulsed fields gradients should act to inhibit the expulsion of drug molecules from the cell. The transporters will have to work against an artificially created concentration gradient that seeks to actively bring ions and molecules into the cell.



Pulsed EM Field Generation:



From a practitioners viewpoint any instrument that might generate a pulsed EM field must conform to several criteria. Primarily, the device must be safe for the patient, and application must be consistent from patient to patient. Secondarily the device must be easy for the practitioner to utilize. Presently, there is not such a clinical device approved for use by the US FDA. Countries such as Canada have approved  pulsed EM field devices that meet this criteria. Below is a picture of a type of device that will produce the necessary non thermal pulsed EM field. A variant of this instrument is presently approved by Health Canada as a transmitted field TENS device for the control of pain. Effective range is approximately 6 meters, typical treatment distance of the patient  from the device is 2 meters.

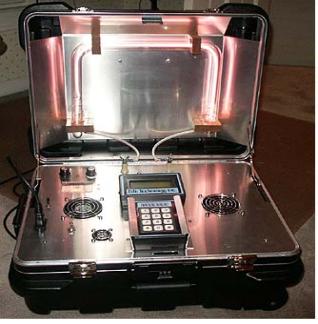

300 Watt PEP pulsed field transmitter. 27.125 MHz carrier frequency. Pulse rate capability 225 KHz.





Transmitted Pulse. 10 KHz pulse rate ( 10,000 pulses per second )





Summary :



The application of a transmitted pulsed EM field of low potential makes it possible to modify the electrochemistry and physiology of cancer cells.  Cellular membrane systems and cellular mitosis  are frequency responsive, and can be influenced by pulsed EM fields of varying frequency sequences and duration.  Frequency sequences can be created to selectively encourage different metabolic responses. The presence of the external field will produce a  change in transmembrane potentials . This change in potentials will create osmotic, ion gating,  and endocytotic effects at the cells plasma membranes. Internal and external actions of the field will result in ion/molecular transport, reversal of cellular stress factors, interfere with angioneogeneis, increase DNA  transcription rates, produce an immune response,  and cause  inhibition of drug resistance mechanisms



It is the hypothesis of this paper that the totality of these effects will be enhanced transport of  chemotherapeutic medications into the cells,  retention of the medications to achieve high concentration levels,  and  increased responsiveness to the utilized medication . As the concentration of the medication increases in conjunction with the pulsed field altered cancer cell metabolism, apoptotic effects should become predominant.  Transmitted pulsed  EM fields when used in conjunction with chemotherapeutic medications will; decrease the treatment dosage substantially,   produce  an enhanced response to treatment, and have minimal to no toxic side effects.





Citations:

1. Binderman I., Somjen D, Shimshoni Z, Levy J, Fischler H, Korenstein R, Stimulation of Skeletal-Derived Cell Cultures by Different Electric Field Intensities is Cell Specific. Biochem Biophys Acta. 1985 Mar 21;844(3):273-9   PMID: 2982428

2. Blank M, Soo L , Frequency Dependence of NA,K-ATPase Function in Magnetic Fields. Bioelctrochemistry and Bioenergetics 1997 May;42 (2) 231-234

3. Brown G. The Energy of Life: The Science of What Makes Our Minds and Bodies

Work. New York, NY: The Free Press, 1999.

4. Carmody S, Wu XL, Lin H, Blank M, Skopicku H, Goodman R,  Cytoprotection by Electromagnetic Field-Induced hsp70: A Model for Clinical Application, J. Cell Biochem 2000 Sep. 7;70(3):453-9  PMID  10972982

5. Cone CD. Variation of the transmembrane potential level as a basic mechanism of

mitosis control. Oncology 1970;24:438-470.  PMID: 5495918

6. Cone CD. The role of surface electrical transmembrane potential in normal and

malignant mitogenesis. Ann NY Acad Sci 1975;238:420-35.

7. Cone CD. Transmembrane Potentials and Characteristics of Immune and Tumor

Cells. Boca Raton, Florida: CRC Press, 1985.

8. Di Carlo AL, Mullins JM, Litovitz TA, Thresholds for Electromagnetic Field -Induced Hypoxia Protection:Evidence for a Primary Electric Field Effect.  Bioelctrochemistry 2000 Sep;52(1):9-16  PMID:  11059571

9. Dorward AM, Singh G. Energetic Characteristics of Cisplatin Resistant Ovarian Carcinoma Cells. Anticancer Research 1996 Jan-Feb;16(1):443-7  PMID:  8615651

10. Duffy JP, Eibl G, Reber, HA, Hines OJ, Influence of Hypoxia and Neoangiogenesis on the Growth of Pancreatic Cancer  Molecular Cancer 2003, 2:12

11. Entin I, Plotnikov A, Korenstein R, Keisari Y. Tumor Growth Retardation, Cure, and  Induction of Antitumor Immunity in B-16 Melanoma-Bearing Mice by Low Electric Field Enhanced Chemotherapy.  Clinical Cancer Research Vol 9,3190-3197 August 2003

12. Feng H, Zeng Y, Graner MW, Likhavheva A, Katsanis E, Exogenous Stress Proteins Enhance the Immunogenicity of Apoptotic Tumor Cells and Stimulate Antitumor Immunity, Blood 2003 Jan1;101(1):245-52 Epub 2002 Aug 22  PMID: 12393411

13. Gluck B., Guntzschel V, Berg H., Inhibition of Proliferation of Human Lymphoma Cells U937 by a 50 Hz Electromagnetic Field. Cell Mol. Biol.( Noisy-le grand) 2001;47 Online Pub: OL115-7  PMID:  11936855

14. Goodman R, Blank M, Insights into Electromagnetic Interaction Mechanisms. J.Cell Physiology 2002 Jul;192(1):16-22  PMID: 12115732

15. Gottesman MM,  Mechanisms of Cancer Drug Resistance, Annu. Rev. Med. 2002;53:615-27  PMID: 11818492

16. Gray JR, Frith CH, Parker JD In vivo Enhancement of Chemotherapy with Static Electric or Magnetic Fields. Bioelectromagnetics 2000 Dec;21 (8):575-83  PMID: 1102947

17. Han L, Lin H, Head M,  Jin M, Blank M, Goodman R. Application of Magnetic Field-Induced Heat Shock Protein 70 For Presurgical Cytoprotection.  Journal of Cell Biochem. 1998

Dec 15;71(4):557-83  PMID:  982770

18. Hochachka PW, Rupert JL, Goldenberg L. Gleave M, Kozlowski P, Going Malignant: The Hpoxia-Cancer Connection in the Prostate. Bioessays 2002 Aug;24(8):749-57

PMID: 12210536

19. Johnson LV, Walsh ML, Bockus BJ , Chen LB  Monitoring of Relative Mitochondrial Membrane Potential in Living Cells by Fluorescence Microscopy. J. Cell Biology 1981 Mar;88(3):526-35  PMID:  6783667

20. Kirson ED ,  Gurvich Z, Schneiderman R, Dekel E, Itzhaki A, Wasserman Y,

Schatzberger R, Palti Y Disruption of Cancer Cell Replication by Alternating Electric Fields

21. Kotera Y, Shimizu K, Mule JJ,  Comparative Analysis of Necrotic and Apoptotic Tumor Cells as a Source of Antigens(s) in Dendritic Cell-Based Immunization.  Cancer Res, 2001 Nov 15;61(22):8105-9  PMID: 11719436

22. Luchian T., Bancia B, Pavel C,Popa G ,  Biomembrane Excitability Studied Within a Wide-Band Frequency of an Interacting Exogenous Electric Field, Electromagnetic Biology and Medicine  2002 ; 21(3):287-302

23. Marino AA, Iliev IG, Schwalke MA, Gonzalez E, Marler KC, Flanagan CA, Association Between Cell Membrane Potential and Breast Cancer. Tumour Biol. 1994;15(2):82-9  PMID:8184256

24. Marino AA, Morris DM, Schwalke MA, Iliev IG, Rogers S Electrical Potential Measurements in Human Breast Cancer and Benign Lesions . Tumor Biology 1994 ; 15(3):147-52  PMID: 8073228

25. Markin VS, Tsong TY, Frequency and Concentration Windows for the Electric Activation of a Membrane Active Transport System. Biophys. J. 1991 Jun;59(6):1308-16 PMID:1873467

26. Mayer B, Oberbauer R, Mitochondrial Regulation of Apoptosis  News Physiol Sci. 2003 Jun;18: 89-94  PMID: 12750442

27. Miyazaki S, Gunji Y, Matsubara H. Shimada H, Uesato M, Suzuki T, Kouzu T Ochiai T, Possible Involvement of Antitumor Immunity in the Eradication of Colon 26 Induced by Low-Voltage Electrochemistry with Bleomycin.  Surg. Today 2003;33(1):39-44  PMID : 12560905

28. Modica-Napolitano JA, Aprielle JR, Basis for the Selective Cytotoxicity of Rhodamine 123. Cancer Res. 1987 Aug. 15;47(16):4361-5  PMID  2886218

29. Panagopoulos DJ, Karabarbounis A, Margaritis LH, Mechanism for Action of Electromagnetic Fields on Cells. Biochem Biophys Res Commun 2002 Oct 18 ; 298(1) 95-102

PMID: 12379225

30. Petronilli V, Nicolli A, Costantini P, Bernardi P  Regulation of the Permeability Transition Pore, a Voltage-Dependent Mitochondrial Channel Inhibited by Cyclosporin A. Biochem Biophysics Acta 1994 Aug 30;1187(2):225-9  PMID: 7521212

31.  Petrov AG, Mircevova L , Is Flexoelectricity the Coupling Factor Between Chemical Energy and Osmotic Work in the Pump? A Model of Pump.  Gen Physiol Biophys, 1986 Aug;5(4):391-403   PMID: 2429895

32. Rafiee P, Pritchard KA Jr, Ogawa H, Eis AL, Komorowski RA, Fitzpatrick CM, Tweddell JS, Litwin SB, Mussatto K. Jaquiss RD, Baker JE. Cellular Redistribution of Inducible Hsp70 Protein in the Human and Rabbit Heart in Response to the Stress of Chronic Hypoxia: Role of Protein Kinases.  J Biol Chem. 2003 Oct 31;278(44):43636-44 Epub 2003 Aug 22

PMID: 12937165

33. Roepe PD, Wei LY, Cruz J, Carlson D, Lower Electrical Membrane Potential and Altered pHi Homeostasis in Multi-Drug Resistant (MDR) Cells:Further Characterization of a Series of MDR Cell Lines Expressing Different Levels of P-Glygoprotein. Biochemistry 1993 Oct 19;32(41):11042-56 PMID: 8105888

34. Rols MP, Femenia p, Teissie J. Long-Lived Macropinocytosis Takes Place in Electropermeabilized Mammalian Cells  Biochem Biophys Res Commun 1995 Mar 8;208(1):26-35  PMID: 7887937

35. Rosemberg Y, Korenstein R, Incorporation of Macromolecules into Cells and Vesicles by Low Electric Field: Induction of Endocytotic-Like Processes, Bioelctrochemistry and Bioenergetics May 1997; 42 (2) 275-281

36. Ruiz-Gomez MJ, de la Pena L, Prieto-Barcia MI,Pastor JM, Gil L, Martinez-Morillo M, Influence of 1 and 25 Hz, 1.5mT Magnetic Fields on Antitumor Drug Potency in a Human Adenocarcinoma Cell Line. Bioelectromagnetics 2002 Dec;23(8):578-85 PMID: 12395412

37. Seeger PG, Wolz S. Successful Biological Control of Cancer: By Combat

Against the Causes. Gesamtherstellung: Neuwieder Verlagsgesellschaft mbH,1990.

38. Teissie J. , Tsong T.  Voltage Modulation of Na+/K+ Transport in Human Erythrocytes. Journal of Physiology ( Paris ) , 1981 May;77(9):1043-1053  PMID: 6286955

39. Timashev SF, Effect of Electrical Fields on the Kinetics of Biological Processes, Biofizika 1981 Jul-Aug;26(4):642-646

40. Tomida A, Tsuruo T,  Drug Resistance Mediated by Cellular Stress Response to the Microenvironment of Solid Tumors.  Anticancer Drug Des. 1999 Apr;14(2):169-177

PMID:10405643

41. Tsong TY, Liu DS, Chauvin F, Astumian RD, Resonance Electroconformational Coupling: A Proposed Mechanism for Energy and Signal Transductions by Membrane Proteins. Biosci. Rep. 1989 Feb;9(1):13-26  PMID: 2655737

42. Tsong TY,  Liu DS, Chauvin F, Electroconformational Coupling (ECC): An Electric Field Induced Enzyme Oscillation for Cellular Energy and Signal Transductions. Bioelectrochemistry and Bioenergetics Vol 21 Issue 3, June 1989 319-331

43. Williams CD, Markov MS, Hardman WE, Cameron IL. Therapeutic Electromagnetic Field Effects on Angiogenesis and Tumor Growth. Anticancer Res. 2001 Nov-Dec;21(6A):3887-91

PMID: 11911264

44. Witkin SS, Heat Shock Protein Expression and Immunity: Relevance to Gynecologic Oncology  Eur J. Gynaecol. Oncol. 2001;22(4):249-56  PMID 11695802
